What Is a Waterproof Membrane? Inside a 4-Layer Shoe

A waterproof membrane is an extremely thin film, built into a shoe or jacket, with microscopic pores that are too small for liquid water to pass through but large enough for water vapour (sweat) to escape. In a shoe it sits between the outer fabric and the lining, and it does the actual waterproofing; the outer layer and lining mostly protect it and keep your foot comfortable.

How a membrane actually works

The best-known example is the ePTFE membrane used in GORE-TEX products. Gore describes it as a microporous material about 0.01 mm thick, with roughly nine billion pores per square inch. Each pore is about 20,000 times smaller than a water droplet, so rain can't squeeze through, but about 700 times larger than a water vapour molecule, so sweat vapour can pass the other way.

That is why a good membrane can be waterproof and breathable at once. Water as a liquid is blocked; water as a vapour is not. One caveat from outdoor retailer Alpinetrek: breathability depends on a difference in temperature and humidity between the inside and outside, so it works best in low to mid-range temperatures. On a hot, humid day, even a well-made membrane will feel warmer.

Not every membrane works the same way. ePTFE is microporous (tiny holes). Other brands use different constructions, and the details are usually proprietary, so a brand name tells you less than you might hope. If you want to know how a specific shoe is built, look for a plain description of its layers.

Why a membrane needs other layers around it

A membrane on its own is delicate. Alpinetrek notes that abrasion or sharp objects can put holes in it, which is why membranes are laminated to a fabric rather than left exposed. In footwear, that usually means a layered stack:

• Outer layer: takes the scuffs and the weather, and carries the look of the shoe.
• Membrane: blocks liquid water, passes vapour.
• Support or comfort layer: helps the shoe flex with your foot.
• Inner lining: sits against your sock and helps manage moisture.

What the 4-layer ZEA-TEX build looks like

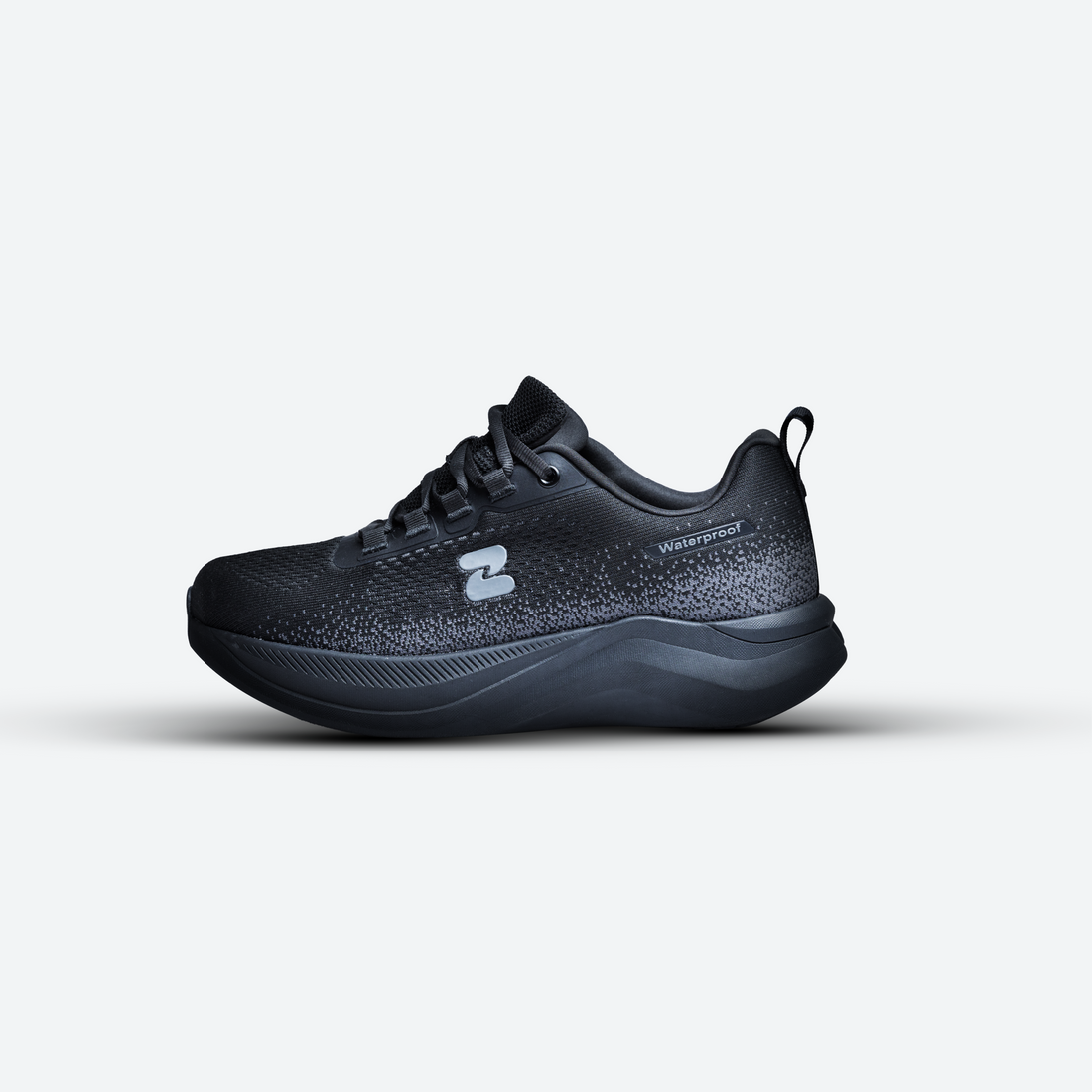

Oszea's ZEA-TEX system follows this same logic, in four layers: a breathable knit outer, a ZEA-TEX waterproof membrane, a flexible elastomer layer, and a soft inner lining. According to our ZEA-TEX page, the design is intended to keep rain, puddles and wet ground out while letting heat and moisture escape. It is made for everyday wet conditions such as rain, puddles, wet grass and damp paths, not for full submersion. Our page does not publish pore-size or lab-test figures, so we won't quote any here; the numbers earlier in this article describe Gore's ePTFE membrane, not ours.

What wears a membrane down

Membranes don't last forever, and most failures are mechanical or down to dirt rather than "the waterproofing running out":

• Dirt and body oils: Alpinetrek says sweat, dirt and sunscreen can build up and reduce breathability. Gentle regular cleaning helps; see our guide to cleaning knit sneakers and the shoe care page.
• Abrasion and sharp objects: scrapes on rough ground or a snagged upper can damage the layers.
• Water coming in over the top: a membrane can't help if water pours in through the ankle opening. Deep puddles beat any shoe.
• Wet socks from sweat: breathability has limits. If you want to know why feet still get damp, read are waterproof shoes breathable?

After a soaking, let shoes dry slowly and away from direct heat, as covered in how to dry wet shoes. And for a refresher on what labels promise, see waterproof vs water-resistant shoes.

Frequently asked questions

Is a waterproof membrane the same as a coating?

Not usually. A coating is applied to the surface of a fabric and can wear off. A membrane is a separate film laminated between layers, so it sits inside the shoe, protected from most day-to-day wear.

Does a membrane make a shoe fully breathable?

No. It lets water vapour pass, but it is slower than an open mesh. The knit outer, lining and your socks all affect how dry your feet feel.

Can a membrane stop working?

Yes. Physical damage, heavy dirt build-up and age can all reduce performance. Cleaning properly and avoiding rough abuse helps.

Are membrane shoes good for deep puddles?

They are built for rain and shallow puddles. Water that comes over the top of the shoe will get in whatever the membrane is. Check the brand's own guidance on submersion.

Sources

• GORE-TEX: The membrane, what it is, how it works (ePTFE, ~0.01 mm, ~9 billion pores per square inch, 20,000x / 700x figures)
• Alpinetrek: How GORE-TEX membranes work (temperature/humidity dependence, dirt build-up, abrasion)
• Oszea: ZEA-TEX (four layers; intended use and limits)
